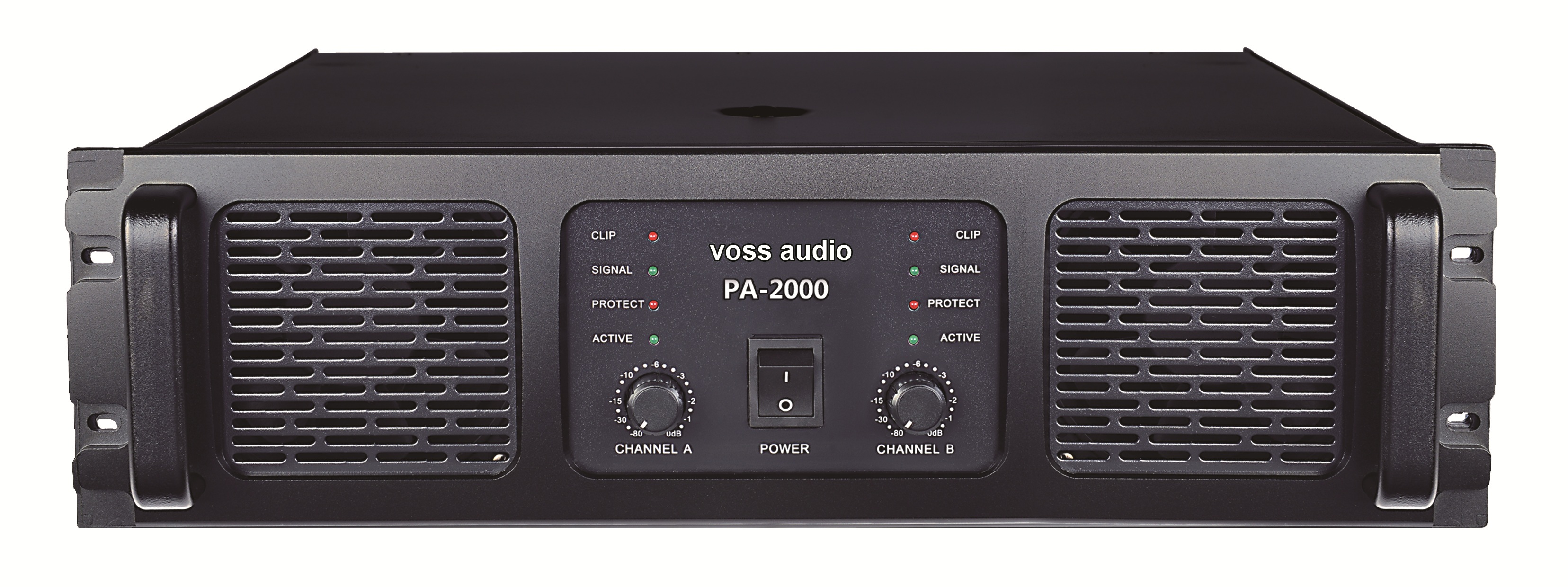

VOSS Audio PA-2000 Power Amplifier

Contact Us For More Info : 016-668 0228







Detailed description：



Product Introduction



• 3U case, 1.5~3 mm in thickness
• Big power transformer, high end capacitor. More powerful and stronger
• Class H circuit design. Comprehensive Protection Circuits, Indicators, and Variable-Speed Cooling
• With over-temperature, overcurrent, Short circuit, ultrahigh frequency protect function.
• Limiting process make the machine work more safe
• Generally used to match dual-18 subwoofer
• Three years warranty
• Approvals: CE, Rohs, CCC

Parameter sheet



Model	PA-2000
Output Power	1000Wx2 @ 8Ohm  1500Wx2 @ 4Ohm
Bridge Power	2000W
S/N	110dB
Frequency Response	±0.1dB, 20Hz-20KHz
T.H.D	≤0.01% @ 8Ω Rated Power 1Khz
Sensitivity	0.775V
Damping Factor	600:1
Input Impedance	10K/20K, Balance/Unbalance
Net Weight	35Kg
Dimension	480mm x 525mm x 140mm
