Features
| DAC operation mode: USB / Coax / Optical | Yes / Yes / Yes |
| Asynchronous mode rear USB | Yes |
| Bit-perfect transmission | Yes |
| USB-B DSD Audio Streaming: DSD2.8 / DSD5.6 / DSD11.2 | Yes / Yes / Yes |
| Ground isolator for DAC Mode operation | Yes |
| iPod / iPhone compatible USB input | Yes |
| DAC chip | SABRE ES9010K2M |
| HDAM version | HDAM SA2 |
| High Grade Audio Components | Yes |
| Customized Components | Yes |

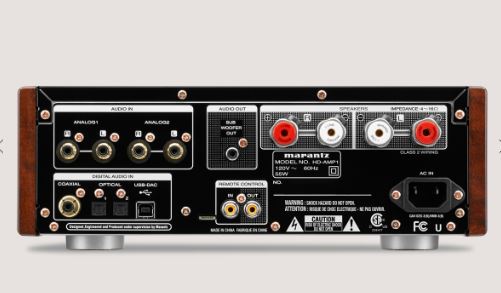

Inputs/Outputs
| Headphone Out | Yes |
| Headphone Volume Control | Yes |
| Headphone Gain Control (low / mid / high) | Yes |
| Analog Input | 2 |
| Digital Optical In / Out | 2 / No |
| Digital Coaxial In / Out | 1 / No |
| Sample Rate digital In | 192kHz/24bit |
| Number of Speaker Terminals | 2x Marantz SPKT-1 |
| Gold Plated Cinch | Yes |
| Front USB | Yes |
| USB type B input for Computer (back) | Yes |
| Asynchronous mode rear USB | Yes |
| Sample Rate USB type B In | 384kHz/32bit |
| USB-B DSD Audio Streaming: DSD2.8 / DSD5.6 / DSD11.2 | Yes / Yes / Yes |
| D-Bus | Yes |
Others
| Power Output (8 / 4 Ohm RMS) | 35W / 70W |
| Frequency Response | 20 Hz-50 kHz |
| Signal to Noise Ratio | 105 dB |
| Total Harmonic Distortion | 0,05% |
General
| Available Colors | Black |

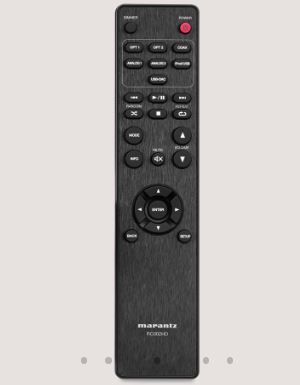

| Remote Control | RC002HD |
| Power Consumption in W | 55 |
| Standby Consumption in W | 0.3 |
| Auto Power off | Yes |
| Detachable Power Cable | Yes |
| Maximum Dimensions (W x D x H) in inches | 12.0 x 13.9 x 4.2 |
| Weight in lbs. | 12.8 |
