Details
.jpg)
.jpg)
.jpg)
Features
| CD / CD-R/RW / WMA / MP3 / AAC | Yes / Yes / Yes / Yes / Yes |
| CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta data | Yes / No / Yes / Yes / Yes |
| Data Disc Compatibility: DSD / WAV / ALAC | No / No / No |
| iPod / iPhone compatible USB input | No |
| DAC operation mode: USB / Coax / Optical | No / No / No |
| Asynchronous mode rear USB | No |
| Bit-perfect transmission | No |
| USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 | No |
| Signal isolator for DAC Mode operation | No |
| HDAM version | SA2 |
| Power Transformer: Toroidal / El | No / Yes |
| High Grade Audio Components | No / Yes |
| Customised Components | Yes |
| Symmetric circuit layout | Yes |
| Copper Plated Chassis | No |
| Extra metal plate for chassis strengthing | No |
| Digital out off / Audio EX Mode | Yes / No |
| Headphone: Standard / Buffer / Current feedback | No / Yes (HDAM-SA2) / No |
Others
| Selectable filter: CD / SA-CD / DAC-Mode | No / No / No |
| Marantz Musical Mastering | No |
| Marantz Musical Mastering Stream | No |
| Marantz Musical Mastering Converter | No |
| Zero Impedance Matching joint copper | No |
| Separated rectifier circuit for analog and digital circuitry | Yes |
| Display: Dimmer / Off | Yes / Yes |
| Low noise LCD display | No |
| 5mm Aluminum top cover | No |
Playback
| Program Play (CD / SA-CD) | 25 |
| Repeat | Yes |
| Random Play | Yes |
| Pitch Control | No |
| Start Sound Mode for SA-CD | No |

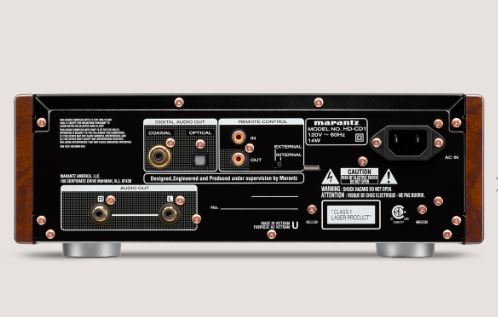

Inputs/Outputs
| Analogue Out (Cinch) | 2ch |
| Balanced Out | No |
| Digital Optical In / Out | No / 1 |
| Digital Coaxial In / Out | No / 1 |
| Sample Rate digital In | No |
| Gold Plated Cinch | Yes |
| USB Audio (Front) / Made for iPod / Made for iPhone® | No / No / No |
| USB type B input for PC (back) | No |
| Asynchronous mode rear USB | No |
| Sample Rate USB type B In | No |
| USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 | No |
| D-Bus | Yes |
| Headphone Out | Yes |
| Headphone Volume Control | Yes |
Specifications
| Mechanism | CJDKT690 |
| D/A Conversion | Multi-bit, Delta-Sigma |
| DAC IC | CS4398 |
| Digital Filter | CS4398 |
| Noise Shaper | CS4398 |
| Low Pass Filter stage | HDAM |
| Output Buffer | HDAM SA2 |
| Headphone amp | HDAM-SA2+Buffer |
| Frequency Response (Cust.) | No |
| Dynamic Range (SA) | No |
| Signal to Noise Ratio (SA) | No |
| Total Harmonic Distortion (SA) | No |
| Channel Separation (SA) | No |
| Frequency Response | 20 Hz - 20 kHz |
| Dynamic Range | 100 dB |
| Signal to Noise Ratio | 110 dB |
| Total Harmonic Distortion | 0.00% |
| Channel separation | 98 dB |
General
| Available color: Black | Yes |
| Metal Front Panel | Yes |

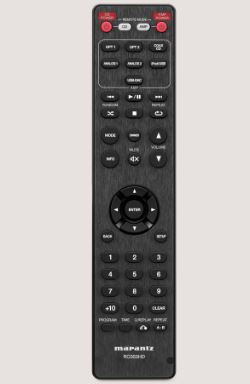

| Remote Control | RC003HD |
| Power Consumption in W | 14 |
| Standby Consumption in W | 0.3W or less |
| Auto Power off | Yes |
| Detachable Power Cable | Yes |
| Maximum Dimensions (W x D x H) in inches | 12 x 12.3 x 4.3 |
| Weight in lbs. | 12.6 |
View more about Marantz HD-CD1 HD PLAYER on main site
