Details

---

• TECHNICAL SPECIFICATIONS

  Features

  CD Compatibility: CD / CD-R/RW / SA-CD / WMA / MP3 / AAC	Yes / Yes / Yes / Yes / Yes / Yes
  Data Disc Compatibility: DSD / WAV / ALAC	<=5.6 / 192 / 96
  110th Anniversary Audio Tuning	Yes
  All black interior	Yes
  Aluminium Top Cover	Yes
  Aluminium Feet	Yes
  Mechanism stabilizer - made of copper	Yes
  AL 32 Processing	ULTRA AL32
  Quad DAC Configuration	4x PCM1795
  DAC Master Clock Design	Yes
  Extra metal plate for chassis strengthing	Yes
  Aluminium side panels	Yes

  Others

  Display: Dimmer / Off

  Yes / Yes

  Playback

  Program Play (CD / SA-CD)	Yes / Yes
  Repeat	Yes
  Random Play	Yes
  Start Sound Mode for SA CD	Yes

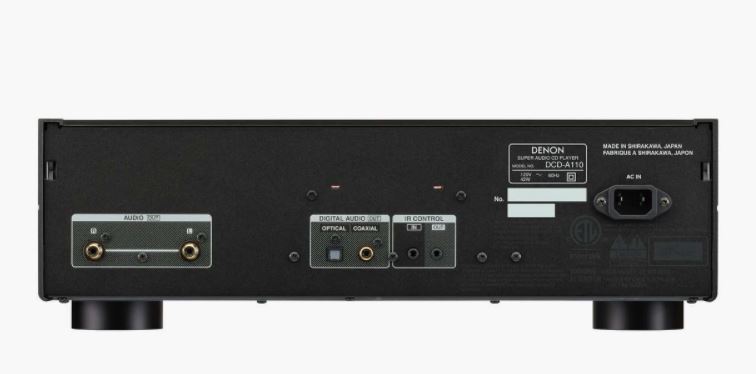

  Inputs Outputs

  Analogue Out (Cinch)	2ch
  Digital Optical In / Out	No / 1
  Digital Coaxial In / Out	No / 1
  Gold plated Cinch	Yes
  Remote Control Bus in / out	Yes

  Specifications

  Mechanism	SVH Loader
  DAC IC	4x PCM1795, Burr Brown Mono-Mode
  Frequency Response (Cust.)	2 Hz-50 kHz
  Dynamic Range (SA)	118 dB
  Signal to Noise Ratio (SA)	122 dB
  Total Harmonic Distortion (SA)	0.00%
  Frequency Response	2 Hz-20 kHz
  Dynamic Range	101 dB
  Signal to Noise Ratio	122dB
  Total Harmonic Distortion	0.00%

  General

  Available colors: Premium Silver / Black	Silver Graphite
  Metal Front Panel	Yes
  Remote Control	RC-1237
  Power Consumption in W	42
  Standby Consumption in W	0.1
  Auto Power Off	Yes
  Detachable Power Cable	Yes
  Maximum Dimensions (W x D x H) in mm	434 x 405 x 138
  Weight in kg	16.2
  Carton Maximum Dimensions (W x D x H) in Inches	577 x 555 x 302
  Carton Weight (inc. product) in LBS	21.5
